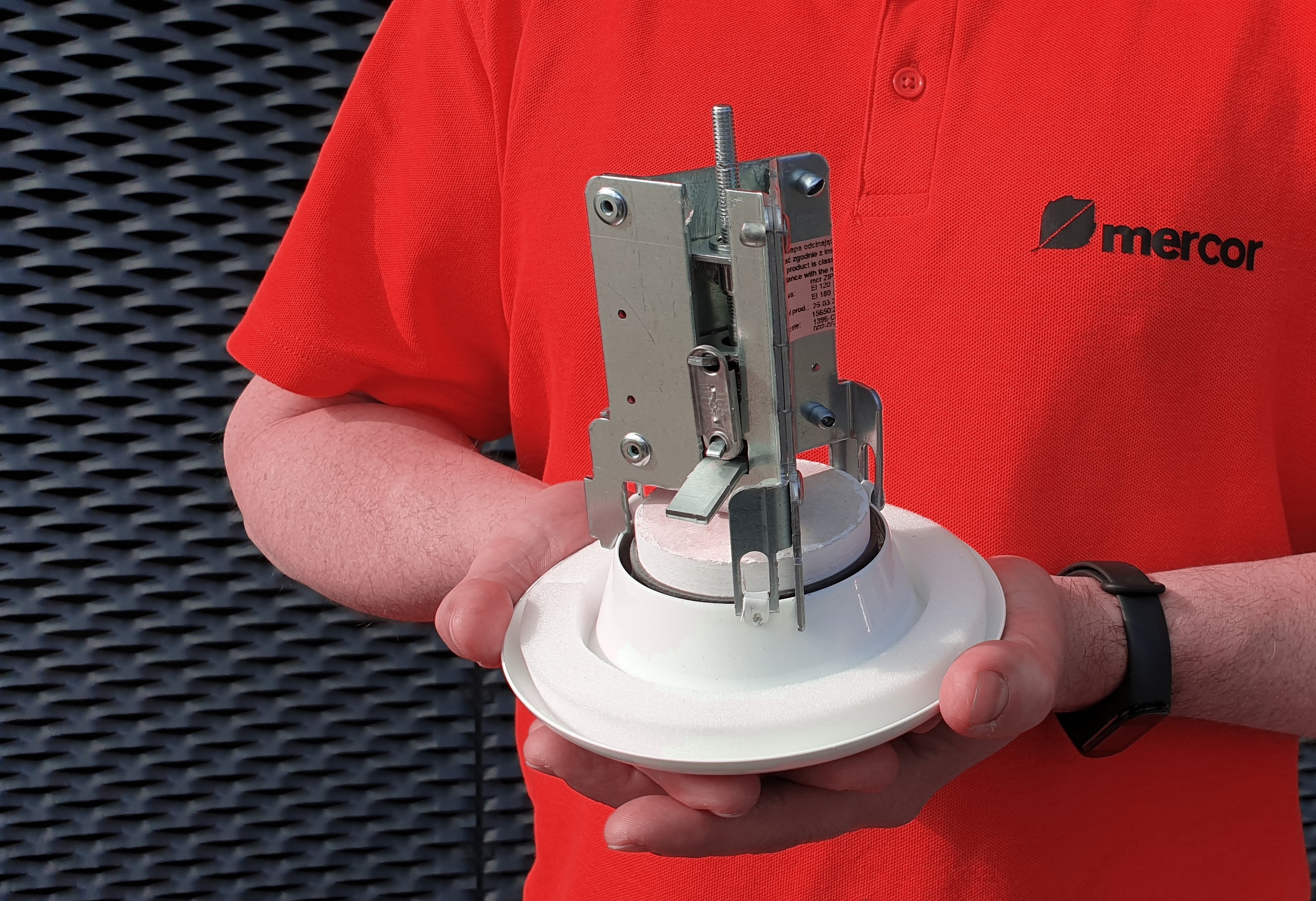

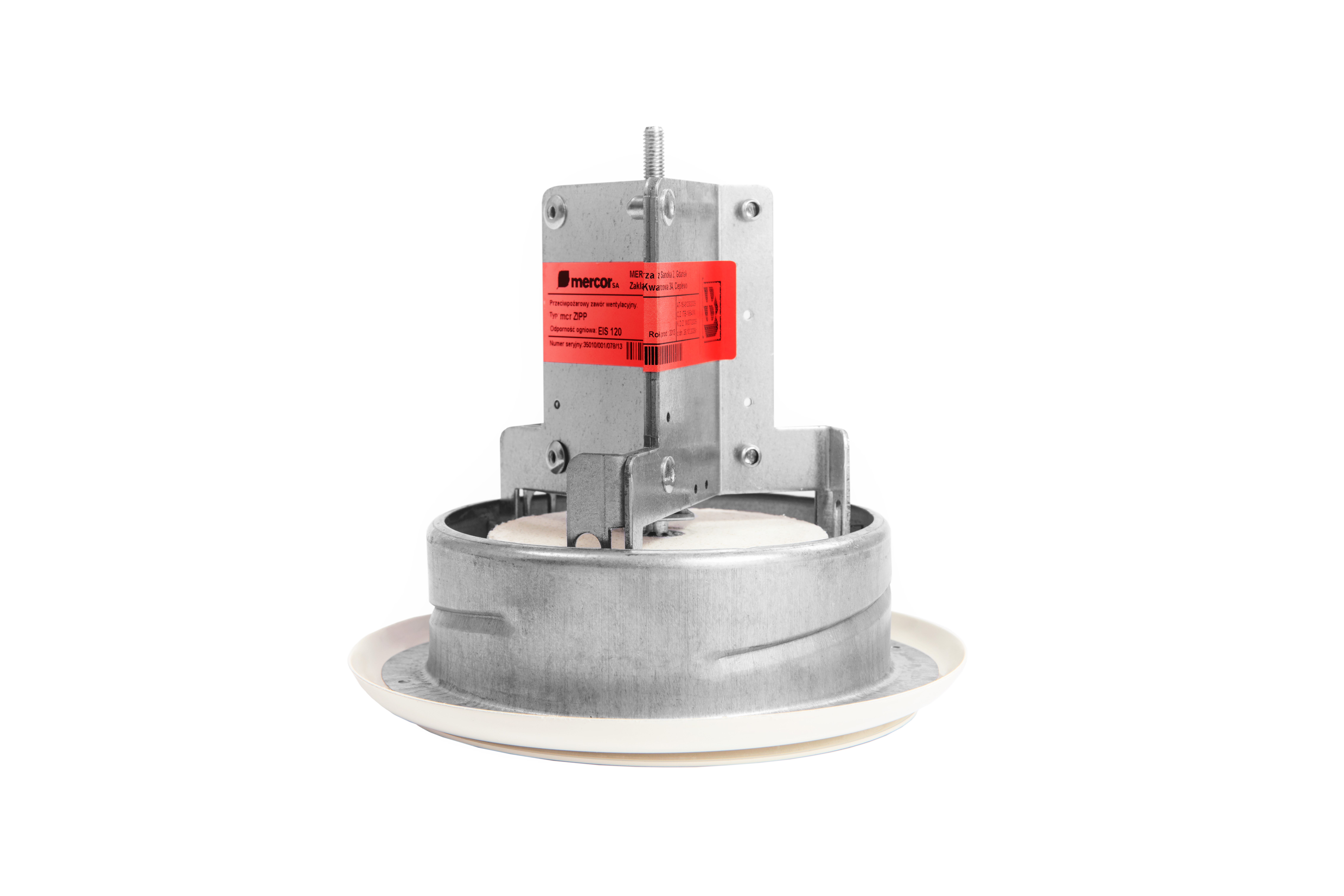

mcr ZIPP - cut-off fire valve

Key details

resistance class EI120 (v_e h_o o→i)S / EI120 (v_e i→o) / EI180 (v_e o→i)S

Valves are certified for conformity with EN 15650.

Additional details

Certificate of constancy of performance 1396-CPR-0092.

Valves are classified as per EN 13501-3 and tested according to EN 1366-2.

Declaration of performance 002-05-CPR-2015.

Description

mcr ZIPP fire cut-off valves are designed for installation at general ventilation terminations, at points of penetrations of these installations through building partitions. They are used for isolating the fire hazard zone from the remaining part of the building, and for transferring air through building partitions. The valves can also be installed without ducts.

Get in touch

Sales

tel. 58 341 42 45
email: mercor@mercor.com.pl

Download

fire resistance up to 180 minutes
possibility of operation with electromagnetic activator
installation in walls and ceilings
possibility of ductless installation

Nominal diameters available: 100 mm, 125 mm, 160 mm, 200 mm

Control - activation:

RST mechanism - thermal trigger 74^oC (optionally 95^oC) with actuating spring, manual arming;
RST+EKI24 mechanism - thermal trigger, 74^oC (optional 95^oC) plus electromagnetic trigger responding to current impulse, ensuring fail-safeness, U=24V DC, manual arming;
RST+EKP24 mechanism - thermal trigger, 74^oC (optional 95^oC) plus electromagnetic trigger responding to power decay, ensuring fail-safeness, U=24V DC, manual arming.

The use of MP230/24 element enables valve powering/triggering with 230V AC voltage.

Detailed technical data is contained in the technical catalogue.

Production halls and warehouses
Logistics centers
Public buildings
Commercial buildings
Residential buildings

Making variants:

mcr ZIPP RST – fire cut-off valve for ventilation ducts, with thermal activator
mcr ZIPP RST+EK – fire cut-off valve for ventilation ducts, with electromagnetic and thermal activator

Additional equipment:

WK1 – limit switch (closed barrier signal)
MP230/24 – transforming module - possibility of supplying the valve with 230 V AC voltage
RMK – extender pipe for installation

Colour:
making in any RAL colour (RAL 9010 standard)
